P.A. System

Combisound

We take great pride in presenting the COMBISOUND, the most complete solution for integrating public address and sound systems. This revolutionary concept combines the best of our ambience sound products with any public address system for large building projects.

The advantages of Combisound

The benefits of combining two systems in one in order to provide power and control with a maximum amount of features makes COMBISOUND a guarantee of success.

 Different functions offering versatile audio and public address applications can be optimized by combining our sound systems with any public address systems and KNX, the worldwide STANDARD for home and building control. As a result, users can enjoy its features in an easy and simple way.

 The System can be tailor-made to meet the specific design requirements of each building, its environment, its electroacoustic features and the level of operations required.

Features

Send Messages

Possibility to send messages to 200 zones individually or in a group format.

Play recorded messages automatically through the fire alarm system.

Send public address messages to zones, groups or general calls through our Telephone Interface.

Listen and enjoy music everywhere in a building

Two audio channels to enjoy music everywhere in a building.

General FM tuner for the entire installation.

One external sound input in the Central Unit.

The Audio Control Units in each zone can incorporate their own FM tuner and the possibility to connect one external sound input.

Control the System

Compatible with KNX, the worldwide STANDARD for home and building control.

PC Software to program and control all the parameters of the installation and also send messages from the PC.

The Audio Control Units can be personalized and can be programmed to switch on/off automatically.

All Audio Control Units can be switched off from anyone of them or from the Central Unit.

All the programming features can be blocked to avoid unnecessary access by the users.

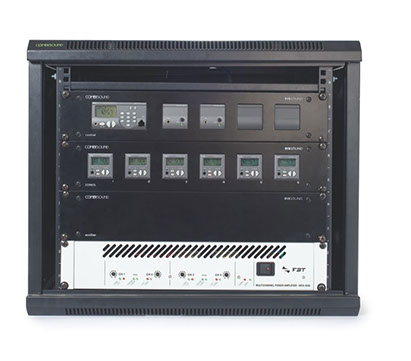

Components

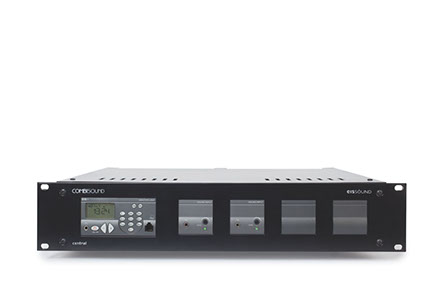

Central control unit (19" Rack Cabinet):

  • Two audio channel for background music.
  • Optional module for recorded messages.
  • KNX Interface.
  • PC and Telephone Interface.
  • Connector for FM Antenna.
  • Connection for intercom microphone base and zone modules through double terminal output.

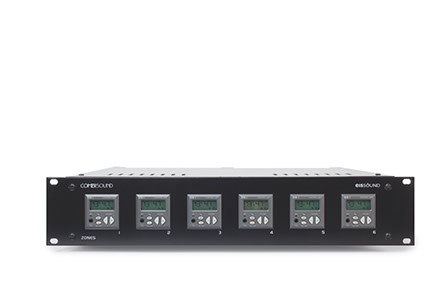

Zone control unit (19" Rack Cabinet):

  • Each unit consists of 1 to 6 audio control units for 1 to 6 zones.
  • The maximum number of zones permitted is 200 for each installation.
  • Connection for any power amplifier of any public address system through audio output with plug-in terminals.

Complementary modules (19" Rack Cabinet):

Option to carry out personalized internal connections for each type of installation, such as:

  • Emergency connections with 3 wire atenuator.
  • Interphone calls from surgery room to waiting rooms, etc.
