Food Services

Bar & Restaurant: Public Address System

Sample: 1 | 2

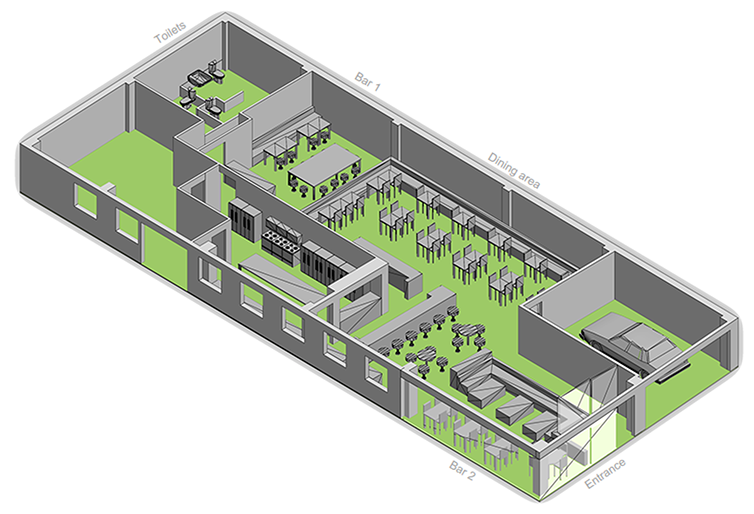

Click, hold & scroll -left to right- to see before and after the sound installation.

Background music based on a 100 Volt. amplifier with one audio channel, FM tuner and USB connector.  It allows you to send the output selection to different zones. Each zone is provided with cabinet speakers.

Product Description

Ref. Description Units
81381 Mixer Amplifier - MA-3624S 1
Mixer amplifiers designed for total 6 inputs (channel) application. Included 3 AUX and up to 5 microphone connectors. The series include the models of output power 240W. Integrates USB and FM tuner. Chime function (ding-dong).
81995 Loudspeaker - EWS-30B (2 Units - PAIR) 6
Two-way ABS speaker bass reflex black color. Woofer 5 “and 1” tweeter. 3.75/7.5/15/30W 100V and 8 ohms, frequency response: 90Hz-20KHz, sensitivity 88 dB. Support included.

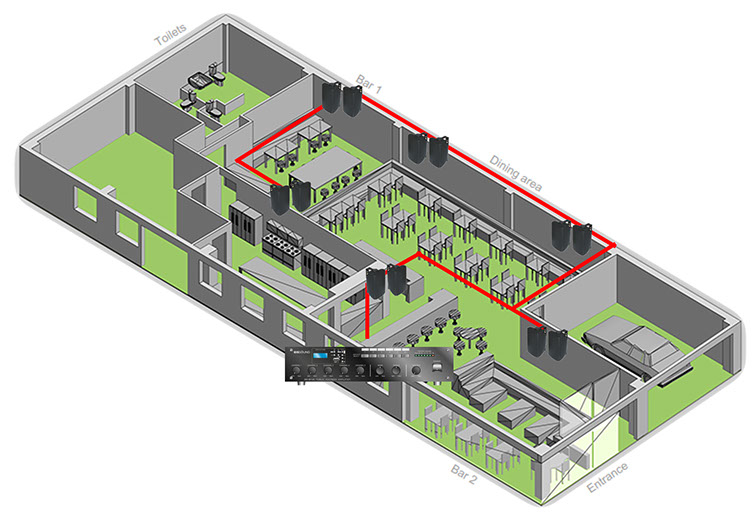

Installation diagram

Sample: 1 | 2
