100 V Line

Surface, In Ceiling & In Wall

ESP-63/WS

Wall speaker. 100 V line technique via audio transformer with 2 power taps. 2-way system. Equipped with woofer and tweeter. Power selector 6W/3W to 100V. Frequency response: 100-20,000 Hz. Sensibility: 91 dB/W/m.

Dimensions: 240 x 340 x 105 mm.

Ref. 81989

Technical sheet

HSQE-T (2 units - PAIR)

Rectangular in-wall speaker 4” 2-way. 2,5W/5W/10W 100V, frequency response: 95Hz-20KHz, SPL: 85 Db Impedance: 8. Ohms / 100V. Dimensions: 251 x 161 x 73mm, cavity minimum diameter: 214 x 124 x 68 mm rectangular.

Ref. 81980

Technical sheet

HST-300C

In-ceiling speaker 3”and metal cover. Power 0.33 / 1 / 2.5W 100 V. Frequency response: 145 Hz-20 kHz, 86 dB SPL.

Dimensions: 104.5 mm diameter x 86 mm, cavity minimum diameter: 85mm.

Ref. 81978

Technical sheet

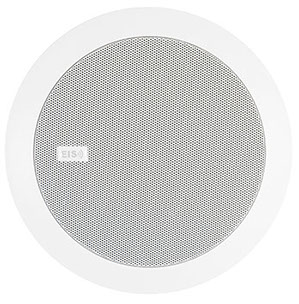

HST-402

Two-way in-ceiling speaker 4”. Power 20W 8 ohm, 1.5 / 3/6 W with 100V line transformer.

Dimensions: diameter 176mm x 66 depth. Minimum diameter cavity 146 mm.

Ref. 81594

Technical sheet

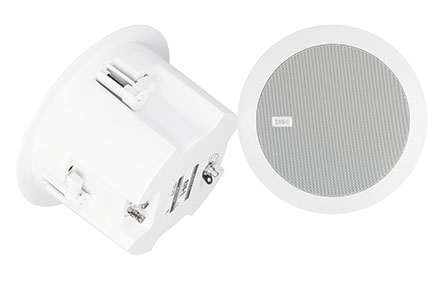

HST-540-2YCT

Two-way in-ceiling speaker 4” with tweeter 1/4”. Power 50W 8 ohm, 1.5 /3/6W with 100V line transformer.

Dimensions: diameter 213mm x 139 depth. Minimum diameter cavity 175mm.

Ref. 81595

Technical sheet

PL 8X

Two-way in-ceiling speaker 8” with tweeter 1”. Power 2,5/5/10/20W with 100V line transformer. IP44.

Dimensions: diameter 247mm x 88mm depth. Minimum cavity diameter 224mm

Ref. 91248 White

Ref. 91249 Black

Technical sheet

PL50

Flush-mount ceiling 6” (dual-cone) loudspeaker.

It has an internal transformer that allows direct connection to 100V constant voltage lines. The transformer has 2 inputs for power tapping: 6 – 3 W. The false-ceiling installation is made through its 2 spring clamps without using tools and other additional attachment components.

Dimensions: 186mm diameter x 65mm depth.

Ref. 91225

Technical sheet

<

>
